2 R packages

BBS Course: Good Software Engineering Practice for R Packages

Daniel

February 10, 2023

Introduction

What you know already

Packages provide a mechanism for loading optional code, data and documentation as needed.
A library is a directory into which packages are installed.
install.packages() and R CMD INSTALL is used to install packages into the library.
library() is used to load packages from the library.
- This attaches the packages at the same time.
Remember that package \(\neq\) library!

What we want to talk about now

How to write, build, test, and check your own package 😊
How to do this in a good and sustainable way.
Give tips and tricks based on practical experience.

Contents of a package

How is a package structured?

Package source = directory with files and subdirectories.

Mandatory:
- DESCRIPTION
- NAMESPACE
- R
- man

Typically also:
- data
- inst
- src
- tests
- vignettes
- NEWS

How to get started quickly

Once upon a time, developers would set up this structure manually. 🥱

Nowadays, it is super fast with:

usethis::create_package()

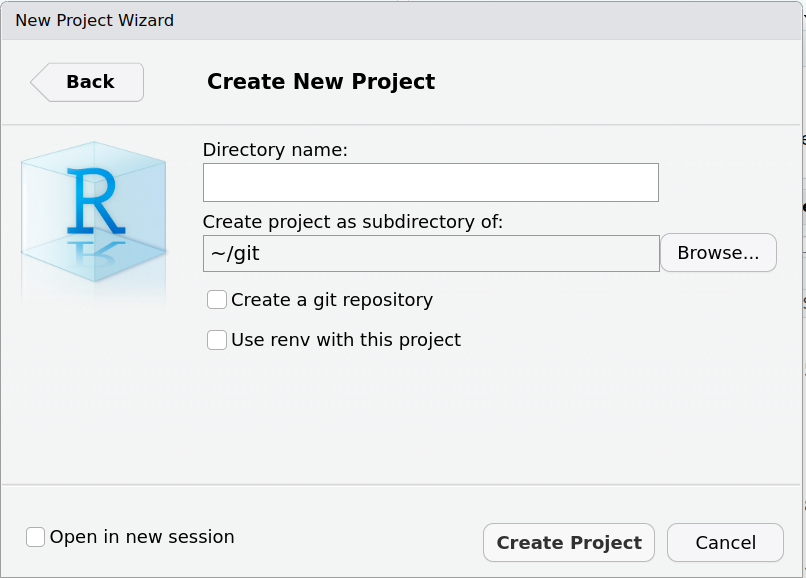

RStudio > File > New Project > New Directory > R Package

`DESCRIPTION` File

Package: Choose the name of your package.
- Not unimportant!
- Check CRAN whether your name is still available.
Title: Add a Title for Your Package. (Title Case)
Version: Start with a low package version.
- Major.Minor.Patch syntax
Authors@R: Add authors and maintainer.
Description: Like an abstract, including references.

`DESCRIPTION` File (cont’d)

License: Important for open sourcing.
- Consider permissive licenses such as Apache and MIT.
Depends:
- Which R version users need to have at least.
- Packages that are loaded upon loading your package.
Imports: Packages which you import functions, methods, classes from.
Suggests: Packages for documentation processing (roxygen2), running examples, tests (testthat), vignettes.

`R` Folder

Only contains R code files (recommended to use .R suffix)
- Can create a file with usethis::use_r("filename")
Assigns R objects, i.e. mostly functions, but could also be constant variables, data sets, etc.
Should not have any side effects, i.e. avoid require(), options() etc.
If certain code needs to be sourced first, use on top of file:

#' @include dependency.R
NULL

`NAMESPACE` File

Defines the namespace of the package, to work with R’s namespace management system
Namespace directives in this file allow to specify:
- which objects are exported to users and other packages
- which are imported from other packages

`NAMESPACE` File (cont’d)

Controls the search strategy for variables:
1. Local (in the function body etc.)
2. Package namespace
3. Imports
4. Base namespace
5. Normal search() path

`man` Folder

Contains documentation files for the objects in the package in the .Rd format
- The syntax is a bit similar like LaTeX
All user level objects should be documented
Internal objects don’t need to be documented, but may be (and I would recommend it)
Once upon a time, developers would set up these .Rd files and the NAMESPACE manually. 🥱
Fortunately, nowadays we have roxygen2! 🚀

`roxygen2` to the Rescue!

We can include the documentation source directly in the R script, on top of the objects we are documenting
Syntax is composed of special comments #' and special macros preceded with @
In RStudio running Build > More > Document will render the .Rd files and the NAMESPACE file for you
Get started with usethis::use_roxygen_md()
Inside a function, click Code > Insert Roxygen Skeleton

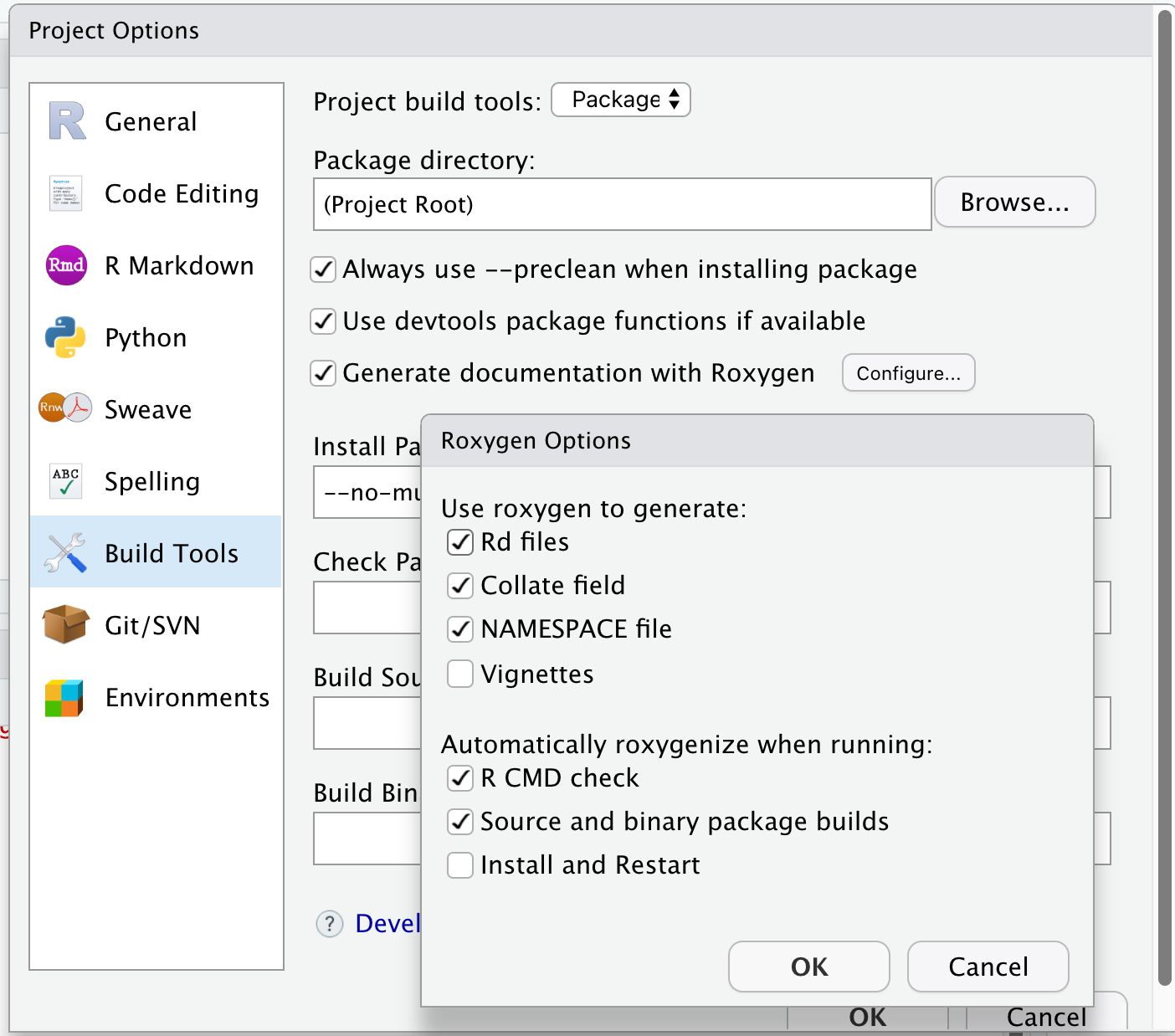

Setting up `roxygen2` in your project

`roxygen2` Source

R/my_sum.R:

#' My Summation Function
#'
#' This is my first function and it sums two numbers.
#'
#' @param x first summand.
#' @param y second summand.
#'
#' @return The sum of `x` and `y`.
#' @export
#'
#' @note This function is a bit boring but that is ok.
#' @seealso [Arithmetic] for an easier way.
#'
#' @examples
#' my_sum(1, 2)
my_sum <- function(x, y) {
  x + y
}

`roxygen2` Output

man/my_sum.Rd:

% Generated by roxygen2: do not edit by hand
% Please edit documentation in R/bla.R
\name{my_sum}
\alias{my_sum}
\title{My Summation Function}
\usage{
my_sum(x, y)
}
\arguments{
\item{x}{first summand.}

\item{y}{second summand.}
}
\value{
The sum of \code{x} and \code{y}.
}
\description{
This is my first function and it sums two numbers.
}
\note{
This function is a bit boring but that is ok.
}
\examples{
my_sum(1, 2)
}
\seealso{
\link{Arithmetic} for an easier way.
}

`roxygen2` Output (cont’d)

NAMESPACE:

# Generated by roxygen2: do not edit by hand

export(my_sum)

`tests` Folder

Here we store the unit tests covering the functionality of the package
Get started with usethis::use_testthat() and usethis::use_test() and populate tests/testthat folder with unit tests
Rarely, tests cannot be run within testthat framework, then these can go into R scripts directly in tests directory
We will look at unit tests in detail later

`data` Folder

For (example) data that you ship in your package to the user
- Get started with usethis::use_data()
- Note: Usually we use lazy data loading, therefore no data() call needed before using the data
If you generate the example data, save the R script, too
- Put that into data-raw folder, start with usethis::use_data_raw()

`inst` Folder

Contents will be copied recursively to installation directory
- Be careful not to interfere with standard folder names
For data that is used by functions in the package itself
- Those would typically go into inst/extdata folder
- Load with system.file("path/file", package = "mypackage")
CITATION: For custom citation() output
- Create it with usethis::use_citation()
inst/doc can contain documentation files (typically pdf)

`src` Folder

Contains sources and headers for any code that needs compilation
Should only contain a single language here
- Because R uses it, mixing C, C++ and Fortran usually works with OS native compilers
Much more complex to write and maintain than an R only package
Typically only makes sense for
- wrapping existing libraries for use in R
- speeding up complex computations - starting point: Rcpp::Rcpp.package.skeleton()

`vignettes` Folder

Special case of documentation files (pdf or html) created by compiling source files
Package users don’t need to recompile the vignettes - they are delivered with the package
Start a new vignette with usethis::use_vignette()
- Starts an Rmd vignette, compiled with knitr
Important for the user to understand the high-level ideas
Complements function-level documentation from our roxygen2 chunks

`NEWS` File

Lists user-visible changes worth mentioning
In each new release, add items at the top under the version they refer to
Don’t discard old items: leave them in the file after the newer items
Start one with usethis::use_news_md()

Building the package

Documenting the package

The first step is to produce the documentation files and NAMESPACE
In RStudio: Build > More > Document

Checking the package

R comes with pre-defined check command for packages: “the R package checker” aka R CMD check
About 22 checks are run (so quite a lot), including things like:
- package can be installed
- is the code syntax ok
- is the documentation complete
- tests are run
- examples are being run
In RStudio: Build > Check

Building the package

The R package folder can be compressed into a single package file
Typically we manually only build “source” package
- In RStudio: Build > More > Build Source Package
- Makes it easy to share the package with others and submit to CRAN

Installing the package

R comes with pre-defined install command for packages: R CMD INSTALL
In RStudio: Build > Install
Note: During development it is usually sufficient to use Build > More > Load All
- Runs devtools::load_all()
- Roughly simulates what happens when package would be installed and loaded
- Key: much faster!

Exercise

Let’s try this out now 😊

Set up a new R package with a fancy name
Fill out the DESCRIPTION file
Include a new function
Add roxygen documentation
Export the function to the namespace
Produce the package documentation
Run checks
Build the package

References

License information

Creator (initial author): Daniel Sabanes Bove
This work is licensed under the Creative Commons Attribution-ShareAlike 4.0 International License.
The source files are hosted at github.com/kkmann/workshop-r-swe
Important: To use this work you must provide the name of the creator (initial author), a link to the material, a link to the license, and indicate if changes were made
